Lydite® Farming Fence Digital Tester 9.9kv

1/5

√ For monitoring the proper functioning of fence system

√ Digital display showing volts up to 9.9k volts

√ LCD screen

OEM/ODM

Art No. : MLD-003R

Material:ABS, Copper
Color：Red
MOQ：1

√ For monitoring the proper functioning of fence system

√ Digital display showing volts up to 9.9k volts

√ LCD screen

Frequently bought together

Description

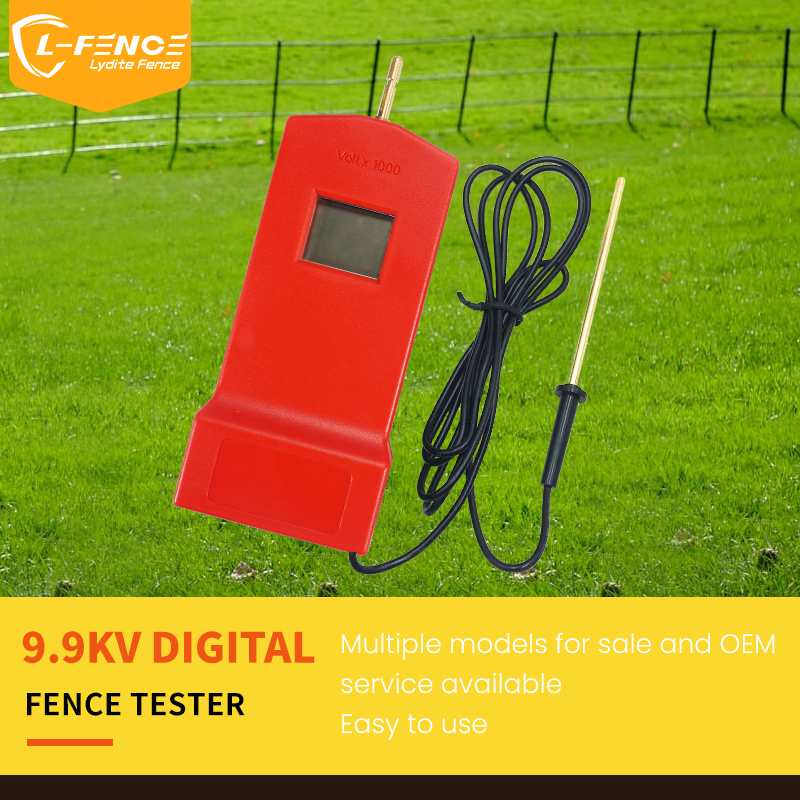

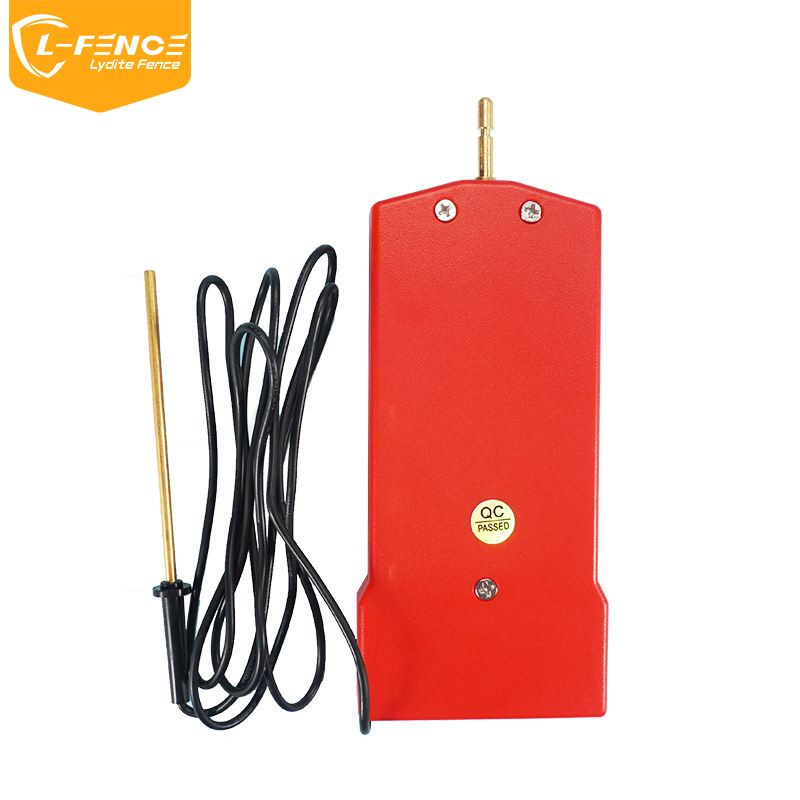

Lydite® Farming Fence Digital Tester, 9.9kv

A short in your electric fence occurs when the power escapes to the ground. This can be caused by a broken underground cable broken wire or insulator a loose connection or something touching the fence such excessive vegetation. Precise monitoring of the fence voltage extra-large display! Means you are always sure that your electric fence is providing complete protection.

At a glance

1.Test the energizer
The output voltage of an electric fence energizer should be at least 5000V. If the voltage is below 5000V then the energizer may have a problem. If the voltage is above 5000V then the trouble lies with your fence or ground system.

1.Turn off energizer

2.Disconnect ground and fence leads from the energizer

3.Turn on energizer

4.Touch ground probe to energizer's ground terminal

5.Touch the tester's metal tip to energizer's fence terminal

6.Digital display shows voltage in kilovolts (e.g. 5.0 = 5000V)

2.Test the fence
Check the voltage to ensure the fence is properly electrified before introducing animals. Confirm voltage is at least 3000V at the end of the fence line.

1.Insert corded probe into the soil

2.Touch the tester's metal tip to an energized fence strand

3.Digital display shows voltage in kilovolts (e.g.3.0 = 3000V)

4.Pull meter away from fence then remove the probe from the soil (when pulling use the probe handle not the cord to prevent damage to the wire).

Details

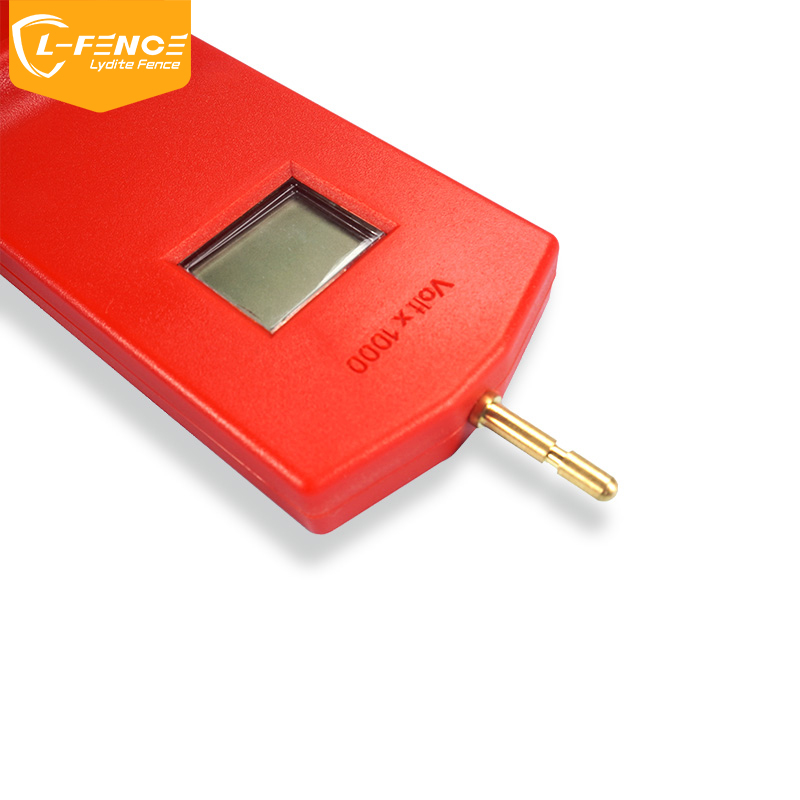

  ·  Fence tester with digital display
  ·  LCD digtial screen: 24 x 20 mm
  ·  Very large number display easy to read
  ·  Displays the voltage between 0.2k and 9.9k volts range
  ·  Very precise voltage measurement
  ·  Work with 6F22 9V battery or equivalent

Listing

·  1 x Lydite® Farming Fence Digital Tester 9.9kv

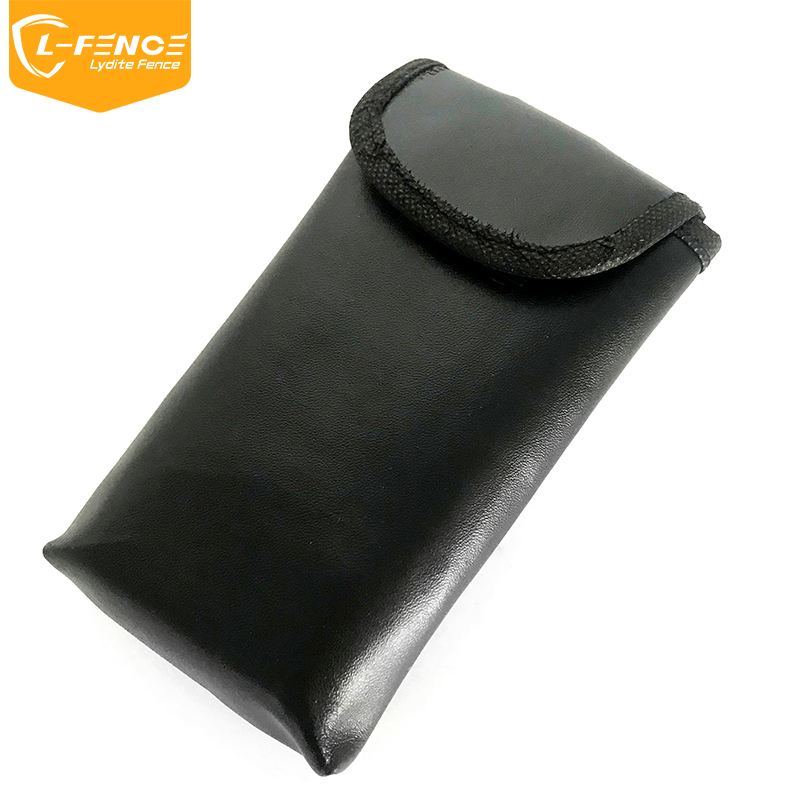

·  1 x Leather pouch
·  Without battery

Downloads

User Manual - MLD-003 Series Digital Voltmeter
